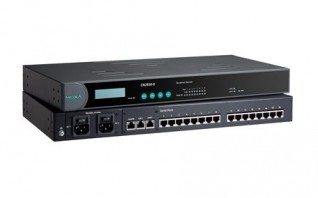

CN2600 SERIES
Dual-LAN terminal server with 16 RS-232 ports
LCD panel for easy IP address configuration (excluding wide-temperature range models)
Dual-LAN cards with two independent MAC addresses and IP addresses
Redundant COM function available when both LANs are active
Dual-host redundancy can be used to add a backup PC to your system
Dual-AC-power inputs (for AC models only)
Real COM/TTY drivers for Windows and Linux
Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
Dual-LAN cards with two independent MAC addresses and IP addresses
Redundant COM function available when both LANs are active
Dual-host redundancy can be used to add a backup PC to your system
Dual-AC-power inputs (for AC models only)
Real COM/TTY drivers for Windows and Linux
Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 2
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Serial Console Telnet Console Windows Utility Device Search Utility (DSU)
- Management: ARP BOOTP DDNS DHCP Client DNS HTTP IPv4 SMTP SNMPv1/v2c/v3 TCP/IP Telnet UDP ICMP SLIP
- MIB: MIB-II
- Security: HTTPS/SSL RADIUS SSH PAP CHAP
- Unicast Routing: RIPV1/V2 Static Route
- Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NTWindows Embedded CE 5.0 and 6.0, Windows XP Embedded
- Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
- Android API: Android 3.1.x and later
- Fixed TTY Drivers: macOS versions: 14, 13, 12, 11 and 10.1x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- Virtual Machine: VMWare ESXi (Windows 11 / 10)VMware Fusion (Windows on macOS 14, 13, 12, 11 and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11 and 10.1x)
- Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x and 4.xmacOS 14, 13, 12 and 11
Serial Interface
- Connector: 8-pin RJ45
- No. of Ports: 16
- Serial Standards: RS-232
- Operation Modes: Real COM mode TCP Server mode TCP Client mode UDP mode RFC2217 mode Terminal mode Reverse Telnet mode PPP mode DRDAS mode Redundant COM mode Disabled
- Baudrate: 50 bps to 921.6 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None Even Odd Space Mark
- Flow Control: None RTS/CTS DTR/DSR XON/XOFF
- RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
- Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Terminator for RS-485: 120 ohms
- Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Power Parameters
- No. of Power Inputs: 1
- Input Voltage: 100 to 240 VAC (50/60 Hz)
- Input Current: 130 mA @ 110 VAC
Reliability
- Automatic Reboot Trigger: Built-in WDT
- Alert Tools: Built-in buzzer and RTC (real-time clock)
Physical Characteristics
- Housing: Metal
- Installation: 19-inch rack mounting
- Dimensions (with ears): 480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in)
- Dimensions (without ears): 440 x 198 x 45.5 mm (17.32 x 7.80 x 1.77 in)
- Weight: 2,460 g (5.42 lb)
Environmental Limits
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature (package included): 0 to 55°C (32 to 131°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- Safety: UL 60950-1
- Vibration: IEC 60068-2-6
- Freefall: IEC 60068-2-32
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 639,332 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
Security Functions
- Authentication: Local database (password only) RADIUS
- Encryption: HTTPS AES-128 AES-256 HMAC RSA-1024 SHA-1
- Security Protocols: SNMPv3 SSHv2
